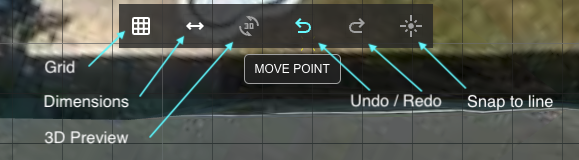

Top Menu

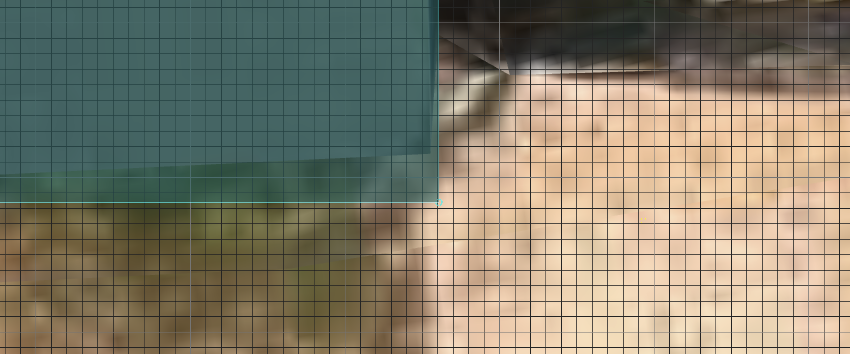

Grid

Depending on the zoom level, the grid density will change.

Dimensions

Use the Dimensions top menu button to display the plate edge dimensions for the selected plate.

Undo / Redo

We can hover over the Undo buttons to see the tooltip for the next/previous operation before we click.

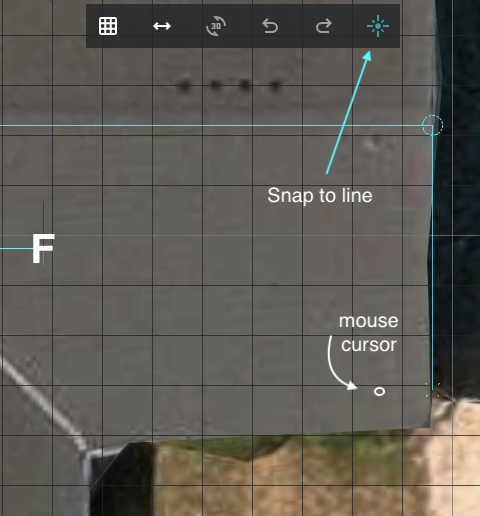

Snap to line

If the snap is on, the line will always be horizontal, vertical, or at a 45-degree angle to the last edge.
